Composite Poles & Masts
Project-specific structures for power, transport and communications.
System definition
How are composite poles and masts specified?
Composite Poles & Masts are project-specific structures for municipal, industrial, power, telecommunications and transport infrastructure.
Height, load-bearing capacity, connection details, foundations, cable routes, embedded components and mounted equipment are coordinated as one engineered system.
Technical content owner: IMARA Engineering Centre
- 01Approach
- Project-specific engineering
- 02Mast height
- Up to 40 m
- 03Power infrastructure
- 6-220 kV reference range
- 04Temperature
- From -70°C to +115°C+*
Technical data
Open the data required for assessment.
The first section is open for immediate reference. Expand further properties, dimensions, supply information and documentation as required.
01Product rangePole, mast and associated infrastructure groups.+
| Group | Typical products | Application |
|---|---|---|
| Municipal infrastructure | Lighting, traffic-sign, CCTV and railway signal poles | Streets, roads and transport hubs |
| Industrial | Lighting, roadside and flag poles | Plants, extraction, storage and fuelling |
| Power distribution | 6-10 kV, 35 kV and 110-220 kV poles | Distribution and transmission |
| Multipurpose masts | 10-40 m structures for mounted equipment | Telecommunications, lighting and monitoring |
| Associated infrastructure | Cable channels, trays and drainage solutions | Roads, railways, metro, tunnels and bridges |
02Engineering configurationParameters coordinated for the operating environment and mounted systems.+
- Height, load capacity, connection details and flange base are selected by project.
- Embedded components, cable routes and equipment interfaces are coordinated with adjacent systems.
- Material formulation and fire-safety classification are selected for the project requirements.
- Power, control and communication routes may be coordinated within confined infrastructure corridors.
03Comparative performanceA source reference for logistics and early-stage material assessment.+
| Parameter | Composite | Reinforced concrete | Polygonal steel | Wood |
|---|---|---|---|---|
| Service life | 50-70 years | 30 years | 30 years | 10-20 years |
| Reference strength | 70 kN·m | 30 kN·m | 50 kN·m | 40 kN·m |
| Reference weight | 110-185 kg | 1,135-2,100 kg | 470 kg | 290 kg without stub |
| Units per vehicle | 92-100 | 10-22 | 22 | 17 with stubs |
| Minimum operating temperature | Down to -70°C | Down to -53°C | Down to -40°C | Down to -50°C |
04Installation and operationReference installation logic and lifecycle inspection requirements.+

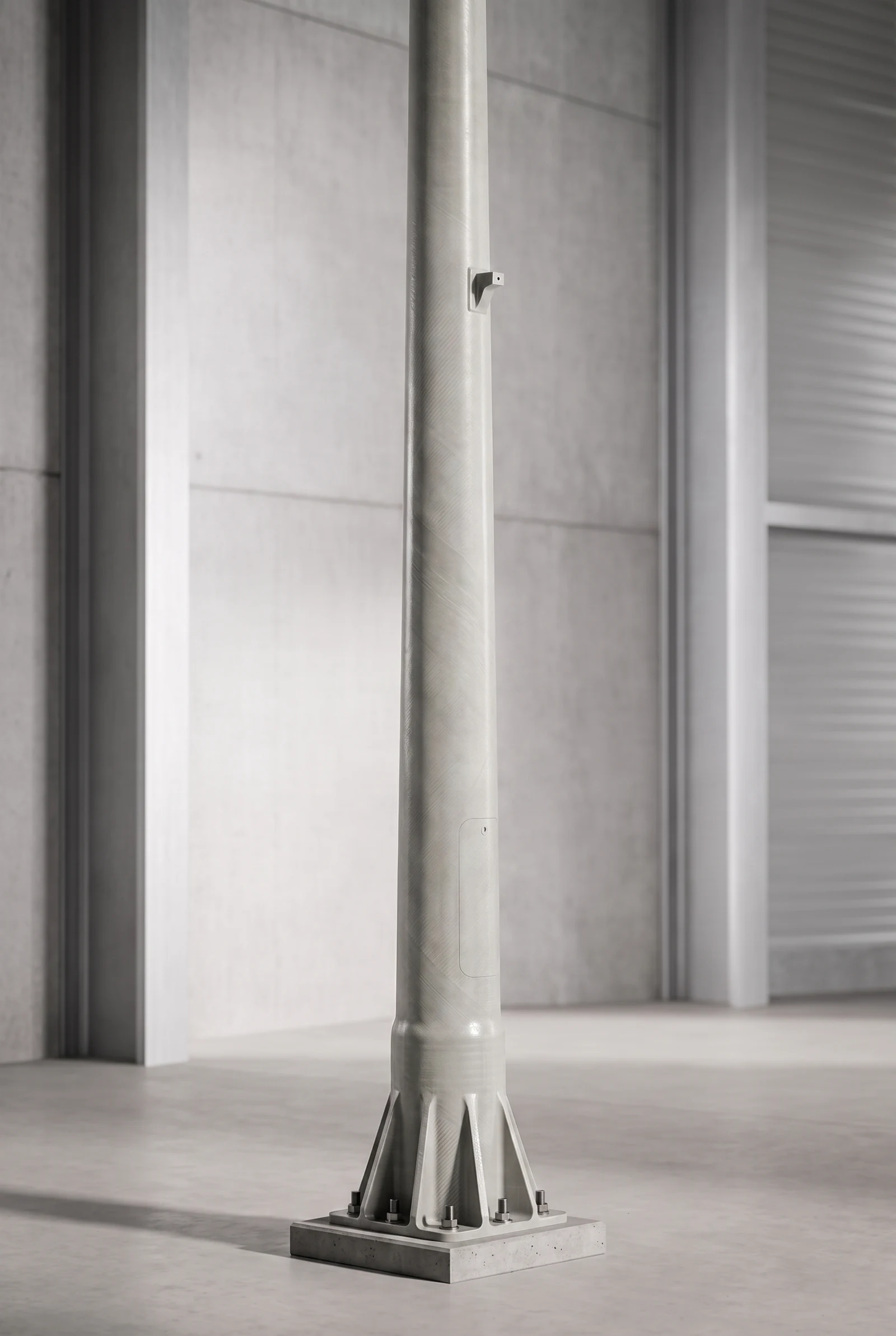

- Flange-base structures are installed on a prepared foundation and anchor-bolt assembly.
- Source reference: three-person crew and approximately 20 minutes for the cited flange-base example.
- Actual installation method depends on structure weight, equipment, foundation and site conditions.
- Connections, flanges, embedded components and equipment are inspected to the facility maintenance schedule.
- Routine anti-corrosion maintenance typical of metal poles is not required within verified service limits.
05Project documentationRecords coordinated for the selected structure and project jurisdiction.+
- Geometry, load capacity and connection details are issued for the selected pole or mast configuration.
- Material, fire-performance and environmental requirements are confirmed for the project location.
- Manufacturing and inspection records are supplied according to the agreed project documentation package.
- Compliance is verified against the governing code, selected model and final supply scope.
*Temperature range, load capacity, impact performance, fire classification and service life depend on the validated material formulation and selected structure. Final values are issued with project documentation.
Project context
Applications and benefits are supporting information.
Use these references to identify a potential material system, then confirm suitability through engineering verification.
Open supporting informationApplications & engineering benefits+
Swipe or scroll horizontally to view all
Engineering verification
Submit project parameters and drawings.
IMARA will review the structural function, environment, governing requirements, supply format and interfaces with adjacent systems.
