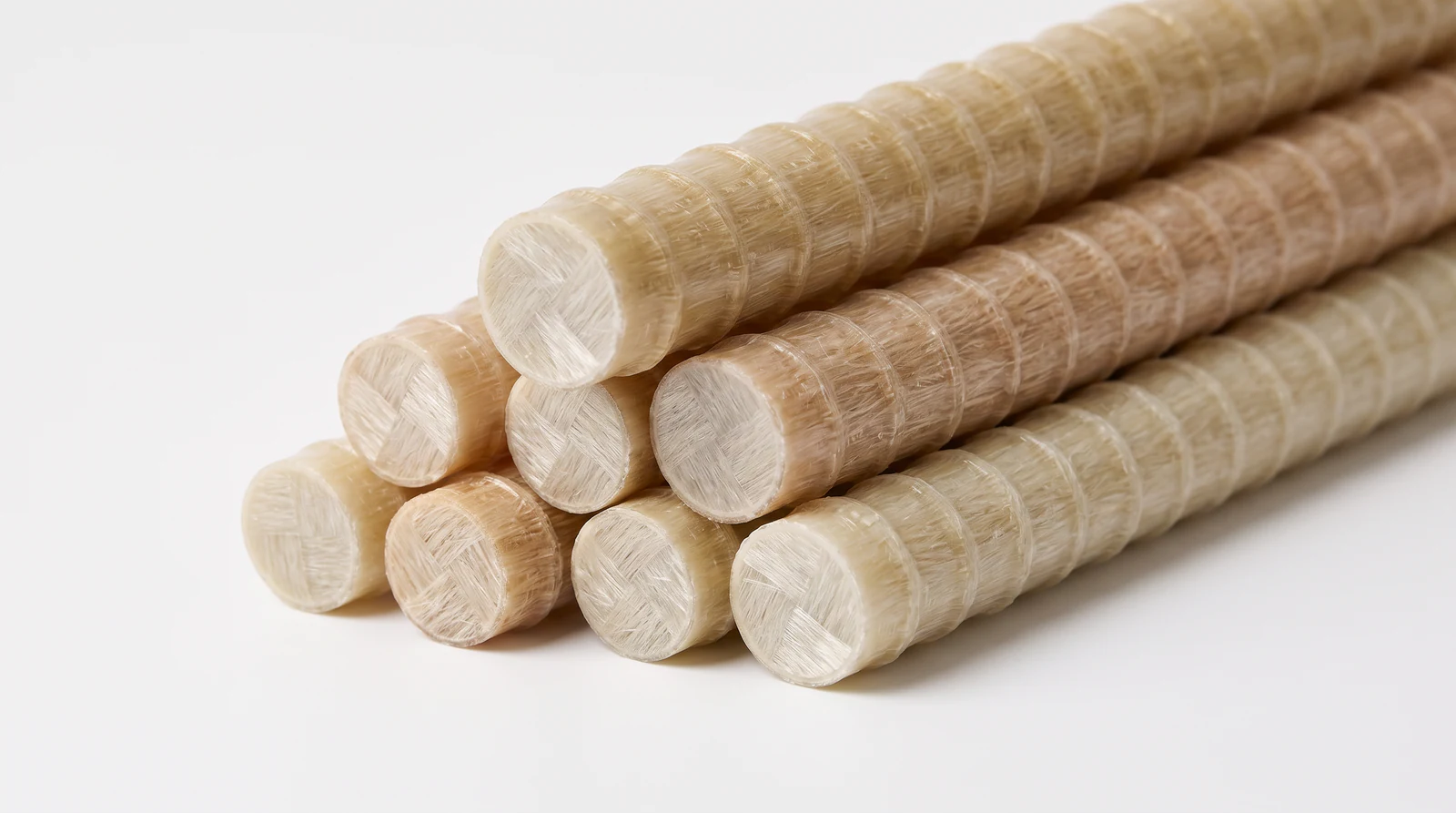

Sand-coated ribbed GFRP reinforcement bars in several diameters
SYS / 01GFRP rebar product range

System definition

What is GFRP rebar and when is it used?

GFRP Rebar is a high-strength glass fibre reinforced polymer bar for reinforced-concrete structures where durability, corrosion resistance and lower operating costs are critical.

The material combines low weight, high tensile strength and complete resistance to moisture, salts and most aggressive chemical environments, helping structures perform without the risk of corrosion failure.

Technical content owner: IMARA Engineering Centre

01Product line
IMARA BAR
02Family code
IMC-RB
03Outside diameter
4-30 mm
04Surface
Deformed profile · no sand coating

Technical data

Open the data required for assessment.

The first section is open for immediate reference. Expand further properties, dimensions, supply information and documentation as required.

01Product identity and article codingDeclared IMARA BAR properties, base articles and commercial SKU rules.
IMARA BAR product definitionDeclared product data for family IMC-RB. The complete commercial SKU identifies geometry, supply form and supplied length.
ParameterDeclared technical data
Commercial lineIMARA BAR
Family codeIMC-RB
Official product nameIMARA Composites GFRP Rebar Without Sand Coating
MaterialFour-component epoxy-based compound with continuous glass roving
SurfaceDeformed / periodic profile; no sand coating
Outer and core diameter tolerance±0.5 mm
Tensile strength, OD 4-13 mm≥1,000 MPa
Tensile strength, OD 14-30 mm≥800 MPa
Tensile modulus, OD 4-13 mm≥50,000 MPa
Tensile modulus, OD 14-30 mm≥45,000 MPa
Compressive strength≥300 MPa
Straight-bar lengthUp to 12 linear metres
Coil option50 linear metres for selected diameters up to OD 12 mm
Engineering product referenceASTM D7957/D7957M-22
Structural design referenceACI 440.11-22
IMARA BAR size matrix and base articlesDiameter codes are recorded in tenths of a millimetre. Add the supply-form and length extension to form the complete commercial SKU.
Outer diameterCore diameterBase article
4.0 mm3.0 mmIMC-RB-OD040-CD030
5.0 mm4.0 mmIMC-RB-OD050-CD040
5.5 mm4.5 mmIMC-RB-OD055-CD045
6.0 mm5.0 mmIMC-RB-OD060-CD050
7.0 mm6.0 mmIMC-RB-OD070-CD060
8.0 mm7.0 mmIMC-RB-OD080-CD070
9.0 mm8.0 mmIMC-RB-OD090-CD080
10.0 mm9.0 mmIMC-RB-OD100-CD090
12.0 mm10.5 mmIMC-RB-OD120-CD105
14.0 mm12.5 mmIMC-RB-OD140-CD125
16.0 mm14.5 mmIMC-RB-OD160-CD145
18.0 mm16.5 mmIMC-RB-OD180-CD165
20.0 mm18.5 mmIMC-RB-OD200-CD185
22.0 mm20.5 mmIMC-RB-OD220-CD205
24.0 mm23.5 mmIMC-RB-OD240-CD235
26.0 mm24.5 mmIMC-RB-OD260-CD245
28.0 mm26.5 mmIMC-RB-OD280-CD265
30.0 mm28.5 mmIMC-RB-OD300-CD285
IMARA BAR commercial SKU extensions
CodeMeaningExample
STStraight barIMC-RB-OD080-CD070-ST-L12000
CLCoilIMC-RB-OD080-CD070-CL-L50000
LxxxxxSupplied length in millimetresL12000 = 12 m; L50000 = 50 m
02Physical and mechanical performanceReference properties for early-stage material assessment.
GFRP rebar versus steel rebarReference comparison for 8 mm IMARA GFRP rebar.
CharacteristicReference steel rebarIMARA GFRP
MaterialSteelE-glass fibre with epoxy resin, hardener and accelerating agent
Declared tensile strength390 MPa≥1,000 MPa (OD 4-13 mm); ≥800 MPa (OD 14-30 mm)
Elongation1.4%2.3%
Thermal conductivity46 W/(m·°C)0.35 W/(m·°C)
Tensile modulus200,000 MPa≥50,000 MPa (OD 4-13 mm); ≥45,000 MPa (OD 14-30 mm)
Linear expansion coefficient13-15 ×10⁻⁶/°C9-12 ×10⁻⁶/°C
Density7.8 t/m³1.9 t/m³
Length6-12 m rodsTo project specification
Design service lifeAccording to building codesAt least 80 years
Operating temperature-40 to +350°C-50 to +60°C
Maximum compressive strength350 MPa300 MPa
03Equivalent replacementReference steel-to-GFRP diameter and mass relationships.
Equivalent-strength replacement and massEquivalent diameters are selected by tensile capacity; final structural replacement requires engineering verification.
Steel ØSteel kg/mGFRP kg/mGFRP Ø
6 mm0.2220.0305 mm
8 mm0.3950.0516 mm
10 mm0.6170.0667 mm
12 mm0.8880.0848 mm
14 mm1.2100.13710 mm
16 mm1.5800.13711 mm
18 mm2.0000.20212 mm
20 mm2.4700.25614 mm
04Design behaviour and limitationsConditions that prevent direct one-to-one substitution for steel.
  • GFRP is an independent engineering material and is not selected by direct one-to-one substitution for steel.
  • The material behaves linearly to rupture and has no steel-like yield plateau or plastic redistribution stage.
  • Deflection, crack width, bar spacing and sustained stress can govern selection before tensile capacity.
  • Flexure, shear, punching, anchorage and connections require separate project checks.
  • The reduced strength of bent portions is considered wherever GFRP stirrups or bent elements are used.
  • All bent reinforcement is factory-made; bending GFRP bars on site is not permitted.
  • Fire, elevated temperature, seismic action, fatigue, freezing and impact require project-specific verification.
05Surface and bond profileThe declared IMARA BAR product has a deformed periodic profile without sand coating.
Declared surface
Deformed / periodic profile without sand coating
Bond verification
Bond performance is verified for the supplied profile and selected diameter
Tolerance
Outer and core diameter tolerance ±0.5 mm
06Supply, handling and installationFormats and procedures that affect specification and site work.
  • Outer diameters 4-30 mm are available as straight bars up to 12 linear metres.
  • Selected diameters up to OD 12 mm can be supplied in 50 m coils.
  • Store horizontally and protect from long-term ultraviolet exposure.
  • Cut with an angle grinder and join using tie wire or plastic fasteners.
  • Large coils are unwound vertically by at least two people near the work area.
07Quality verification and selectionReference thresholds, batch documentation and project review sequence.
  • Quality-management certification for the supplying manufacturer must be current and verified for the project.
  • The verification package should identify nominal and measured cross-sectional area, guaranteed tensile strength, modulus, strain, bond and transverse strength.
  • Alkaline-resistance, moisture-absorption, cure, transition-temperature and fibre-content records are checked for the selected product.
  • Every commercial batch requires an identifiable batch number, quality-control report and traceable supply documentation.
Product verification reference valuesValues are screening references. Design values and acceptance records must be confirmed for the selected product and supply batch.
ParameterTechnical reference value
Glass-fibre content by massNot less than 70%
Glass-transition temperatureNot less than 100°C
Degree of cureNot less than 95%
Average tensile modulusNot less than 44,800 MPa
Average ultimate strainNot less than 1.1%
Moisture absorption to saturationNot more than 1.0%
24-hour moisture absorptionNot more than 0.25%
Strength retention after alkaline exposureNot less than 80%
Strength of bent portionNot less than 60% of straight-bar value
Transverse shear strengthNot less than 131 MPa
Bond strengthNot less than 7.6 MPa
Engineering selection procedureA concise sequence for project review before a product diameter and detail are released.
StageScope of verification
01 · Service conditionsExposure, moisture, chemicals, temperature, fire and seismic action
02 · Structural functionLongitudinal, distribution, temperature-shrinkage or shear reinforcement
03 · Material propertiesGuaranteed strength, modulus, strain, area, bond and bent-element properties
04 · Ultimate limit stateFlexure, tension, compression zone, shear, punching, anchorage and connections
05 · ServiceabilityDeflection, crack width, bar spacing and long-term deformation
06 · Special effectsTemperature, fire, seismic action, fatigue, chemicals, freezing and impact
07 · Design specificationType, diameter, cover, anchorage, installation and batch control

Reference values support early-stage selection. Final diameter replacement, detailing and compliance must be verified for the governing code, load case and project environment.
