GFRP Mesh

Lightweight, corrosion-free reinforcement for slabs and surfaces.

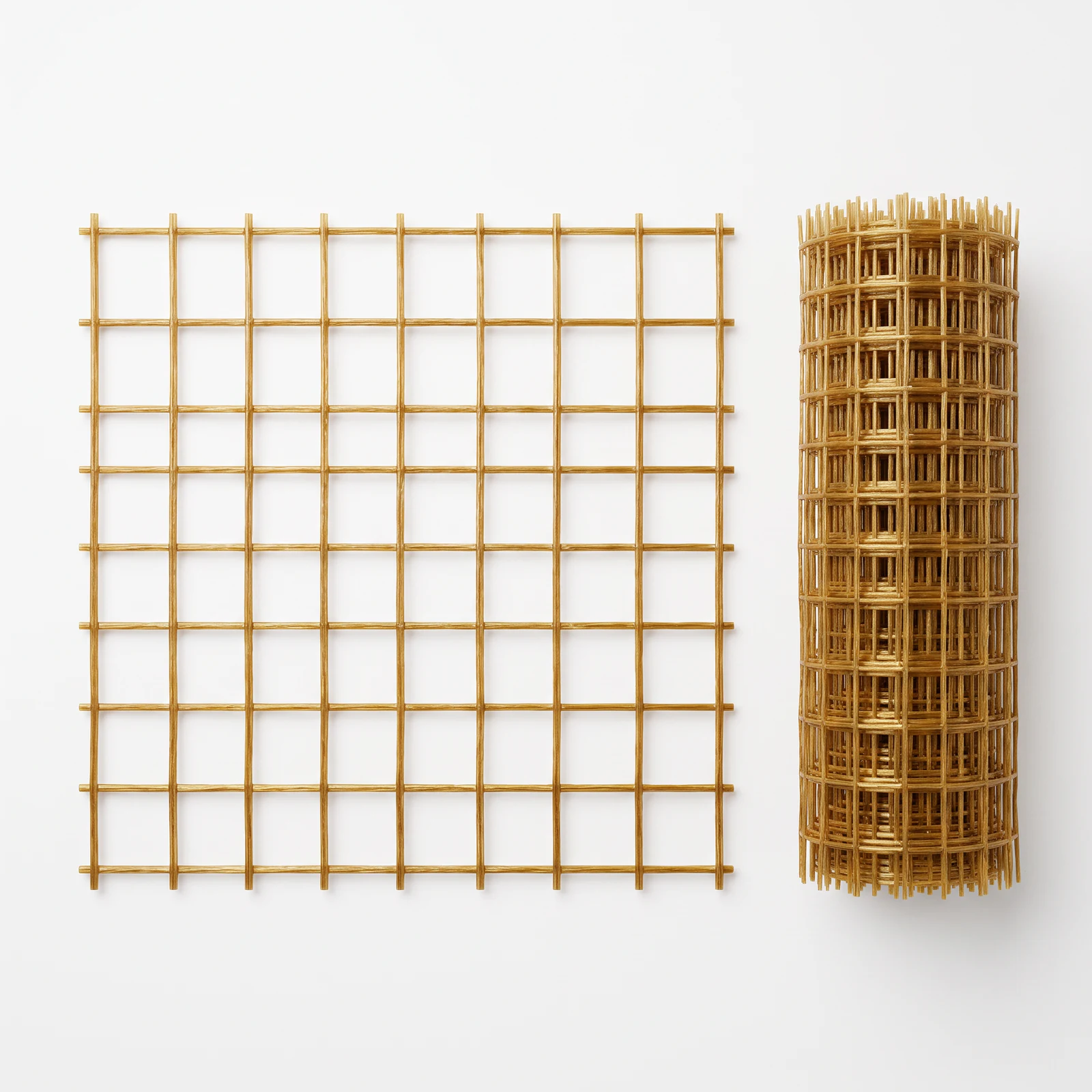

GFRP reinforcement mesh shown as a panel and a roll
SYS / 03GFRP mesh in panel and roll formats

System definition

What is GFRP mesh and where is it used?

GFRP Mesh is a composite reinforcing mesh designed for reinforcing concrete slabs, pavements, floors, foundations and precast concrete elements.

Its high corrosion resistance and low weight make it well suited to wet, chemically aggressive and marine environments while reducing transportation effort and accelerating installation.

Technical content owner: IMARA Engineering Centre

01Product line
IMARA GRID
02Family code
IMC-MS
03Bar diameter
2-6 mm
04Supply
Sheets 1-12 m · rolls up to 25 m

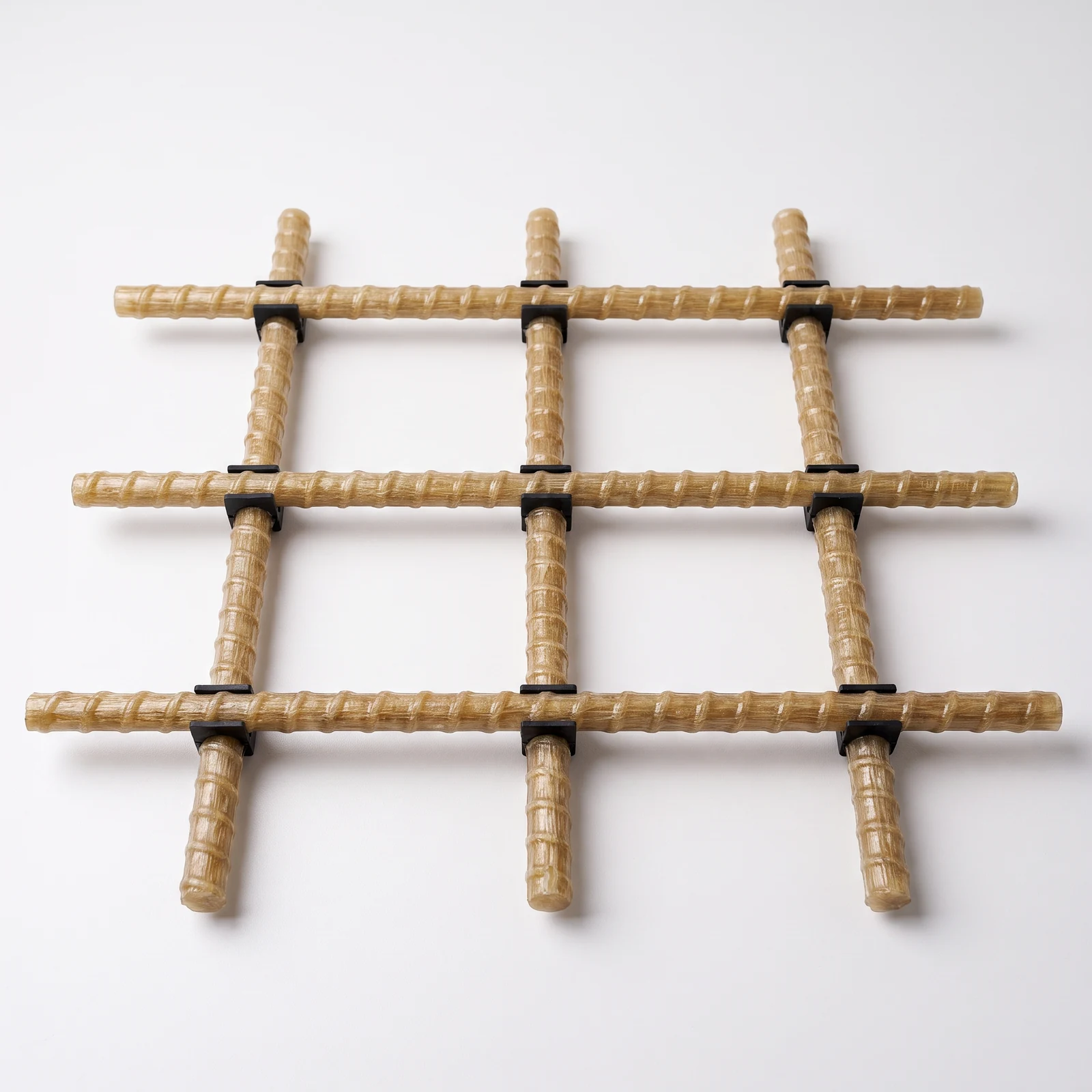

Rigid GFRP mesh bars connected at intersections with black clips
Rigid GFRP mesh connection detail

Technical data

Open the data required for assessment.

The first section is open for immediate reference. Expand further properties, dimensions, supply information and documentation as required.

01Product identity and article codingDeclared IMARA GRID properties and dimensional SKU structure.
IMARA GRID product definitionDeclared product data for GFRP composite mesh family IMC-MS.
ParameterDeclared technical data
Commercial lineIMARA GRID
Family codeIMC-MS
Official product nameIMARA Composites GFRP Composite Mesh
Bar outer diameters2.0 / 2.5 / 3.0 / 4.0 / 5.0 / 6.0 mm
Mesh opening / spacing50 × 50 / 100 × 100 / 150 × 150 / 200 × 200 mm
Sheet dimensionsWidth 1 or 2 m; length from 1 to 12 m
Roll dimensionsRoll length up to 25 m; approved width stated in the order
MaterialFour-component epoxy-based compound with glass roving
Tensile strength of working transverse bar≥800 MPa
Tensile modulus of working transverse bar≥50,000 MPa
Joint constructionInterwoven longitudinal and transverse bars bonded with epoxy resin
Permitted unbonded intersectionsNo more than two intersections per 1 m² of mesh
Permitted resin beadsUp to 1.0 mm high at 100 mm spacing
Supply formLabelled sheets or rolls
IMARA GRID article structureComplete structure: IMC-MS-D[bar diameter]-S[mesh spacing]-[format]-W[width]-L[length].
Code groupAvailable code values
Bar diameterD020 / D025 / D030 / D040 / D050 / D060
Mesh spacingS050 / S100 / S150 / S200
FormatSH = sheet; RL = roll
DimensionsW and L are stated in millimetres
Sheet exampleIMC-MS-D040-S100-SH-W2000-L6000
Roll exampleIMC-MS-D030-S050-RL-W1000-L25000
02Physical and mechanical performanceReference comparison for early-stage steel mesh replacement.
GFRP mesh versus steel meshReference comparison for 3 mm bar and 100 × 100 mm cell size.
CharacteristicReference steel meshIMARA GFRP mesh
Bar tensile strength570 MPa≥800 MPa for the working transverse bar
Elongation2.5%2.3%
Thermal conductivity56 W/(m·°C)0.35 W/(m·°C)
Modulus of elasticity200,000 MPa50,000 MPa
Density7.8 t/m³1.9 t/m³
Design service lifeAccording to building codesAt least 80 years
Electrical conductivityConductiveDielectric
Corrosion and chemical resistanceLowHigh
Magnetic propertiesMagneticNon-magnetic
Roll supplyRequires straighteningReturns to original shape
Joint shear strengthNot standardised30 kgf
Joint pull-off strengthNot standardised20 kgf
03Cell, diameter and massReference mass by cell size and bar diameter.
Reference mass of 1 m² mesh
CellØ2Ø2.5Ø3Ø4Ø5Ø6
50 × 50 mm0.2400.4000.5600.9201.4802.200 kg
100 × 100 mm0.1200.2000.2800.4600.7401.100 kg
150 × 150 mm0.0840.1400.1960.3220.5180.770 kg
200 × 200 mm0.0600.1000.1400.2300.3700.550 kg
04Selection and project verificationChecks required before a steel mesh arrangement is changed to GFRP.
  • Mesh selection considers bar diameter, cell size, tensile capacity and the structural role of the reinforcement.
  • Joint shear and pull-off performance are reviewed where load transfer depends on the mesh intersections.
  • Crack width, deflection, spacing and long-term deformation remain part of the project assessment.
  • Openings, laps, edge details, supports and construction joints are coordinated with the drawings.
  • The selected supply format is checked against transport, unrolling, cutting and placement constraints.
05Supply and handlingPanel and roll formats for transport and installation planning.
  • Standard mesh width is 1 or 2 m.
  • Available cell sizes are 50 × 50, 100 × 100, 150 × 150 and 200 × 200 mm.
  • Sheet width is 1 or 2 m and sheet length can be specified from 1 to 12 m.
  • Roll length is up to 25 m; the approved width is stated in the order.
  • Store horizontally, protect from long-term UV exposure and cut with an angle grinder.
  • Unroll horizontally on a flat prepared surface.

Mesh substitution is governed by bar diameter, cell size, tensile capacity, joint performance and the structural design. Final selection requires engineering review.

Project context

Applications and benefits are supporting information.

Use these references to identify a potential material system, then confirm suitability through engineering verification.

Open supporting informationApplications & engineering benefits
01

Concrete floors

02

Industrial slabs

03

Roads & pavements

04

Parking areas

05

Precast concrete

06

Bridge decks

07

Marine structures

08

Drainage infrastructure

Swipe or scroll horizontally to view all

Engineering verification

Submit project parameters and drawings.

IMARA will review the structural function, environment, governing requirements, supply format and interfaces with adjacent systems.

Send project information
